Panel
Free-layout Panel

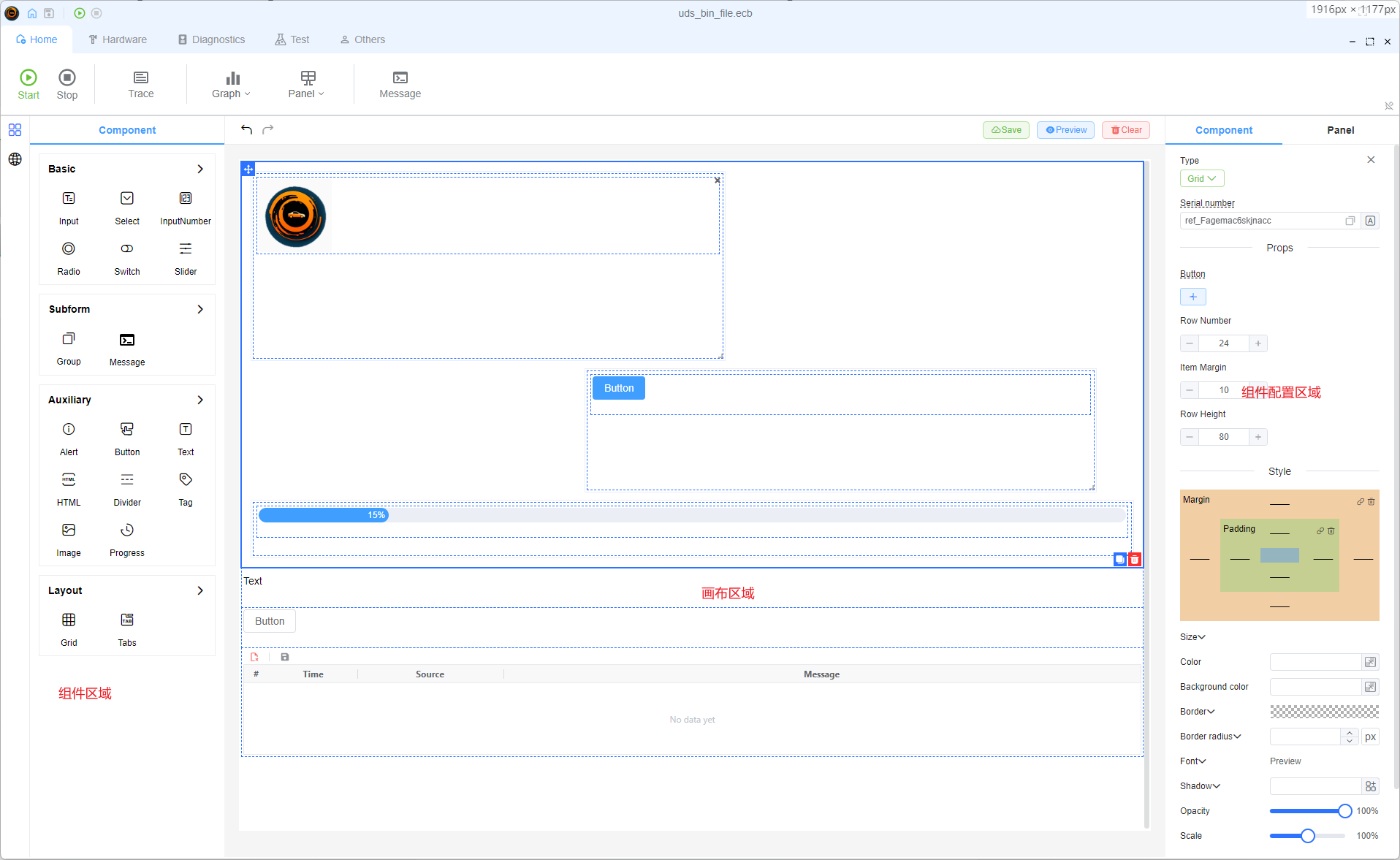

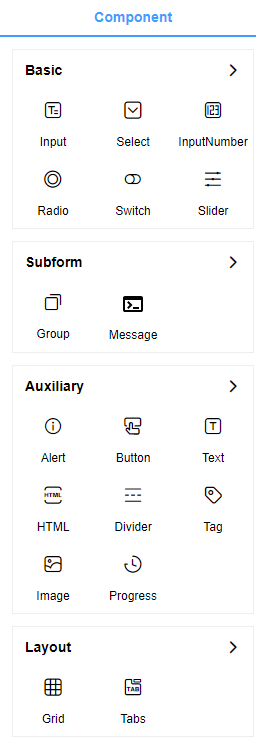

Create a Panel from the Panel menu, drag controls onto the canvas, and configure bindings in the property editor. Use groups, tabs, alignment, resizing and undo/redo to arrange the interface. Editor preview checks layout; start measurement in the runtime view to interact with variables and signals.
Save the layout as an .ecpanel file. The .ecb project keeps its file reference, so share both files. Import an existing .ecpanel to reuse a layout; relink a missing file after moving it. Relinking uses the name stored in the selected file. Legacy embedded panels convert automatically when every item is supported; otherwise the editor shows a migration report and saves the converted controls as a new .ecpanel copy.
Open resources/examples/panel_showcase/PanelShowcase.ecb for a demonstration using two simulate CAN channels. Bind a Slider, Number and Progress control to the same user variable to see them update together. Signal writes update database values; start the corresponding periodic message to transmit them onto the bus.
HTML control
Open resources/examples/panel_html/HtmlControl.ecb for a standalone HTML example. The HTML field accepts markup, styles and inline scripts; the Script field runs after that markup. Both can access the asynchronous panel API:
const level = await panel.getVar('HtmlLevel')
await panel.setVar('HtmlLevel', level + 1)
await panel.setSignal('HtmlDemo.Target', '45')
const unsubscribe = await panel.onVar('HtmlLevel', value => console.log(value))
// Call unsubscribe() when the subscription is no longer needed.Wrap asynchronous code in an async function when placing it in a script field. setSignal accepts a finite number (raw value) or a string (physical value or enum label). Writes require a running measurement. Signal writes reject on failure. The HTML frame cannot directly access Node.js, local files or network connections.
Panel Open file buttons support folders and PDF, TXT, Markdown, CSV, PNG, JPEG, GIF, BMP and WebP files. Executables, shortcuts, scripts and other file types are rejected before opening.
getSignal() returns the latest decoded transmitted or received frame sample in the current measurement, independently of HTML subscriptions. Without a sample it falls back to the project database value, which may be unset. setSignal() updates the transmit database; success does not confirm transmission or ECU processing. Reading immediately after writing therefore does not guarantee the newly written value. Signal recording starts with measurement so a first read or a newly opened window can retrieve earlier one-shot samples.
Remember value
Controls that write a user variable have Remember value enabled by default. When measurement stops, the variable's last value is written back to the project; save the project to keep it in the .ecb, and the next measurement starts from it. Turn it off to start every measurement from the control's Initial value (0 by default, or empty text for input and path controls). If several controls write the same variable and any of them has it off, that control's initial value is used.
Only user variables written by Panel controls are stored; system variables and CAN/LIN signal values are not. The CLI starts from the values saved in the .ecb and does not apply Panel initial values.
Panel Capabilities
The Panel feature offers exceptional flexibility for quickly building various demonstrations or testing platforms:
- Create conversion tools with graphical interfaces for users
- Build testing pipelines with simple, click-based interfaces for production line workers
- Connect components to DBC/LDF file signals, enabling UI changes to trigger corresponding signal changes, see Database
- Bind components to user-defined or system variables to display or modify their values, see Variable
- And much more to be discovered!
